Jetprime P9 Button Normally Open for Handlebar Switch Grey Button

Jetprime - Precision Control, Supreme Quality, Plug-and-Play Convenience

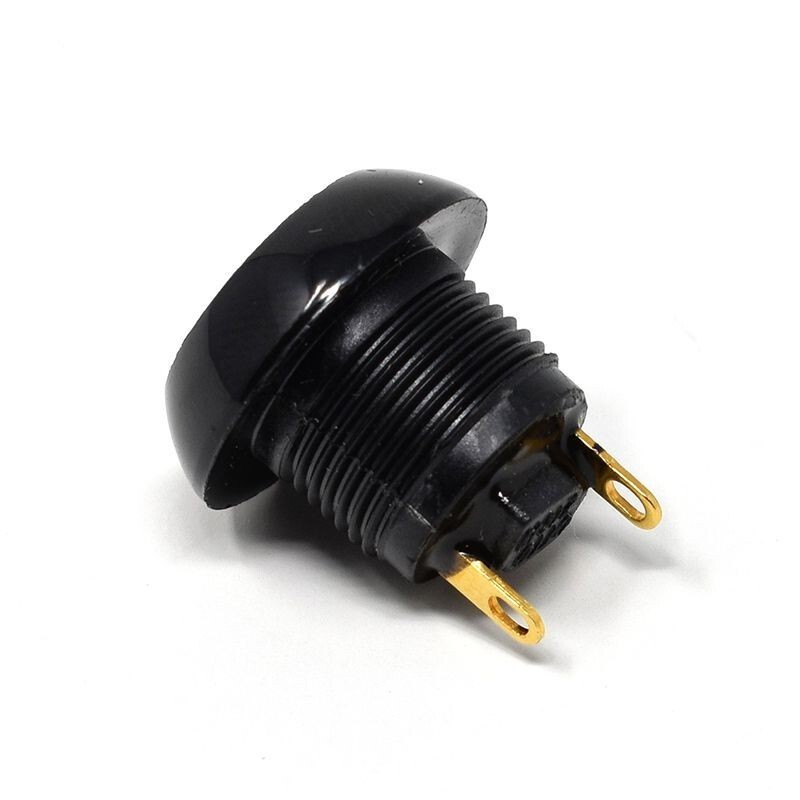

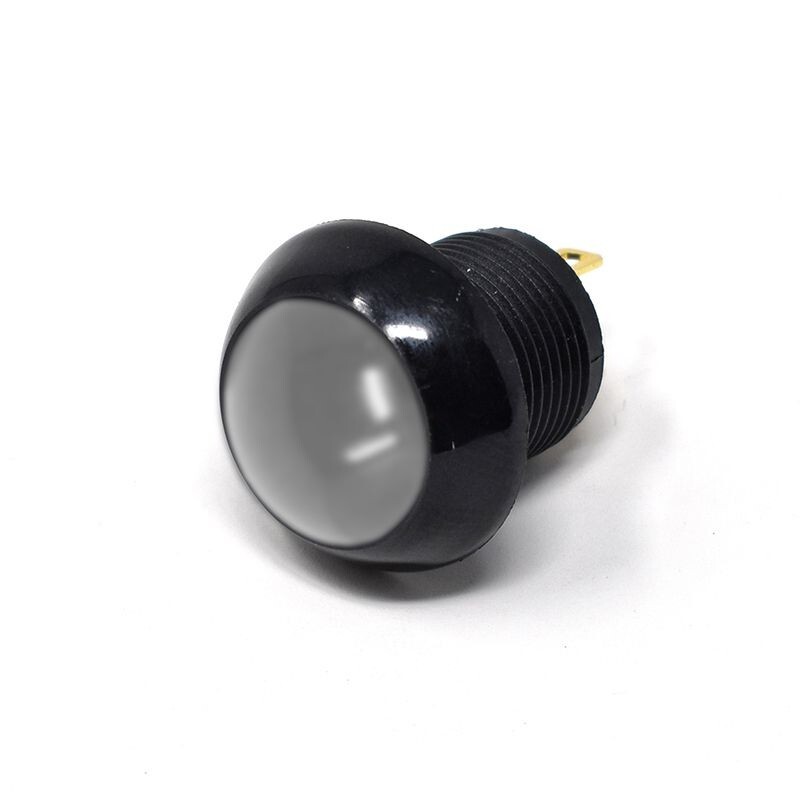

The P9 series pushbutton switches feature a contoured dome-style pushbutton. The P9 comes with a threaded case for hex nut mounting or with a snap-in case. The switch series features short behind-panel depth and offers excellent mechanical and electrical performance while operating under severe conditions found in demanding applications.

High contact pressure and unique contact design provide low contact resistance for logic level switching capability as well as full-rated service. Solder, PC Pin, and 0.110” Quick Connect termination options are available.

Positive tactile feedback signaling the operator when the switch is operated is available in snap-action models but not shorting bar models. The P9 series is a quality precision switch designed for use in panels, control grips, computers, instruments, heavy equipment and other demanding applications where attractive, rugged pushbutton switches are required.

Features:

• Double break or shorting bar, momentary action
• All plastic housing & button construction
• Threaded body or snap-in panel mounting
• Withstands extreme shock & vibration
• Positive tactile feedback contact transfer on snap-action models
• Solder, PC Pin & 0.110” Quick Connect terminal styles
• Moistureproof & dusttight to IP64 or watertight to IP68S and IP69K
• UL recognized & CSA certified
• RoHS compliant
